Описание продукта
Introducing the Adjustable D140 Series LED Spot Downlight Square, a high-quality lighting solution designed for versatility and efficiency. This innovative downlight is manufactured with precision and care, ensuring long-lasting performance and reliability.
With a power range of 20-25W, this Светодиодный потолочный светильник is perfect for a variety of settings, from residential spaces to commercial environments. The adjustable design allows you to customize the direction of the light, providing flexibility in illumination and highlighting specific areas as needed.
The square shape of the downlight adds a modern touch to any space, while the LED technology ensures energy efficiency and cost savings. Say goodbye to traditional lighting solutions and upgrade to the Регулируемый светодиодный потолочный светильник for a brighter, more sustainable future.
Trust in the expertise of our manufacturer to deliver top-notch products that meet your lighting needs. Invest in quality, invest in efficiency – choose the D140 Series Adjustable LED Downlight for your next lighting project.
| Adjustable D140 Series LED Spot Downlight Square 20-25W | ||
| Код товара | XH-PL-20W-AS | XH-PL-25W-AS |
| Власть | 20 Вт | 25W |
| Водитель | Tridonic, Philips, Osram, HEP, TCI, BOKE, Lifud | |
| Напряжение | AC200-240В, AC100-240В | |
| коэффициент мощности | PF>0.9 | |
| напряжение светодиода | DC36V | |
| Токовый ток светодиода | 500 мА | 600mA |
| Регулировка яркости | DALI, TRIAC, 0/1-10 В, ZigBee, BLE, 2,4 ГГц, DMX | |
| Цветной вывод | Один цвет, TW, DTW, RGB, RGBW, RGBCW | |
| Материалы | ADC12 Литой алюминий | |
| Размер | :D90x90xH92mm | |
| Adapter brand | Global, Powergear, Unipro, STUCCHI, Eutrac | |
| Бренд светодиодов | Citizen, Bridgelux, CREE, Philips, Luminus | |
| CCT | 2700K, 3000K, 3500K, 4000K, 5000K, 6500K | |
| КРИ | CRI80+, CRI90+, CRI95+, CRI98+ | |
| SDCM | <3 | |
| Оптика | Линза | |
| Угол луча | 15/24/36/60° | |
| Защита | IP20 | |
| Заканчивать | Мэтт Уайт, Мэтт Блэк | |
| Гарантия | 5 лет | |
Size and Drawing
Регулировка яркости
Сценарии применения
Похожие видео
Список товаров
| Ряд | Номер изделия. | Власть | Напряжение светодиода | Текущий | Эффективность | Габариты (ДхВ) | Вырезать |

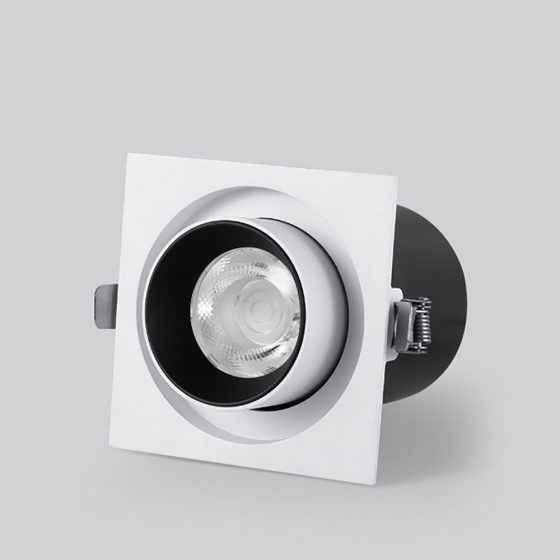

| D90 Series | XH-PL-10W-AS | 10 Вт | DC36V | 250 мА | 100-130lm/W | 90x90x92mm | 75x75mm |

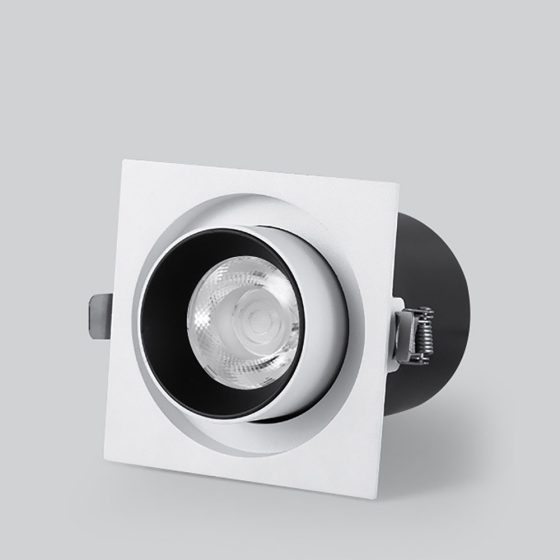

| D115 Series | XH-PL-15W-AS | 15 Вт | DC36V | 350 мА | 100-130lm/W | 115x115x120mm | 95x95mm |
| D140 Series | XH-PL-20W-AS | 20 Вт | DC36V | 500 мА | 100-130lm/W | 140x140x140mm | 115x115mm |
| XH-PL-25W-AS | 25W | DC36V | 600mA | 100-130lm/W | 140x135x140mm | 115x115mm | |
| D160 Series | XH-PL-30W-AS | 30 Вт | DC36V | 700/750 мА | 100-130lm/W | 160x160x150mm | 145x145 мм |
| XH-PL-35W-AS | 35W | DC36V | 800mA | 100-130lm/W | 160x160x150mm | 145x145 мм |
